TREFOIL ROAD
ROAD
TREFOIL ROAD
High-performance road fork with a patented Trefoil steerer for seamless internal routing. Features a magnetic brake cover for direct flat-mount installation without adapters (700x32 clearance).
★ FROM THE CATALOGUE
trefoil road

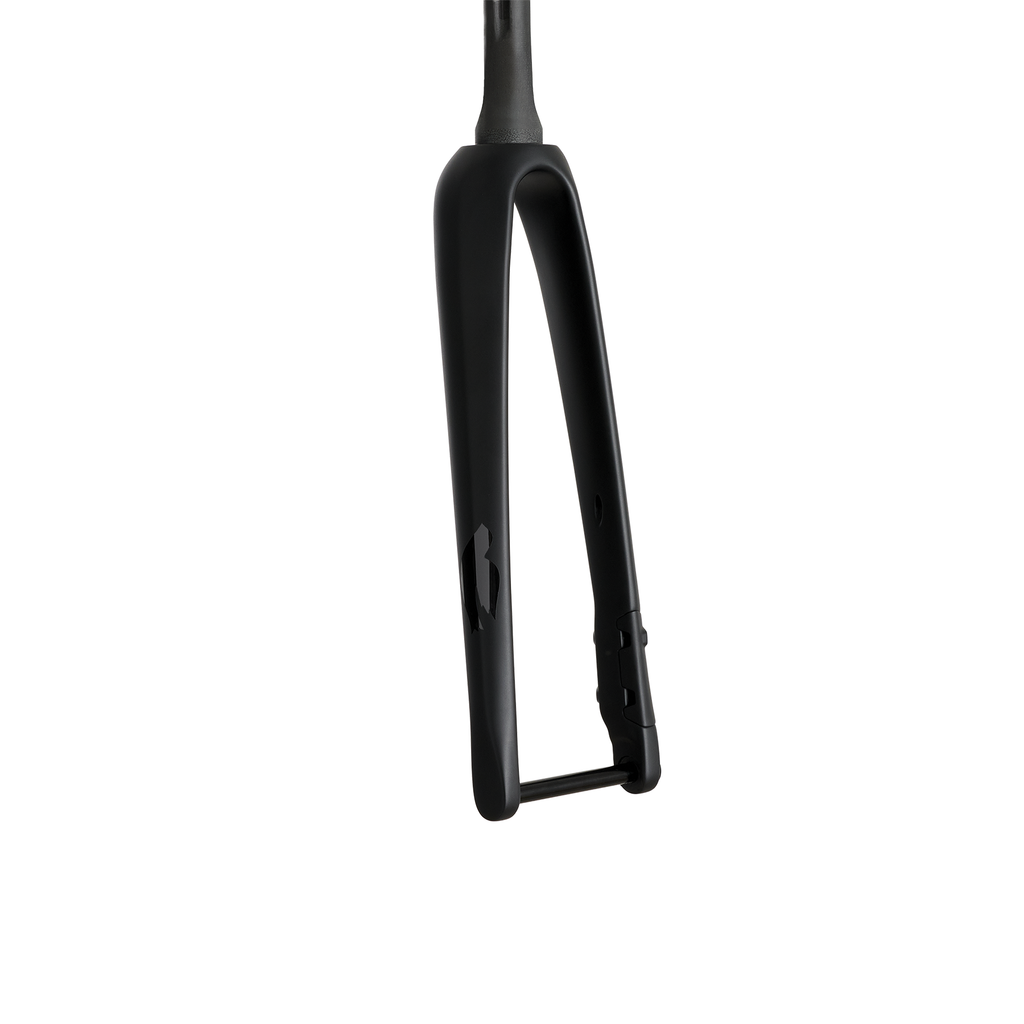

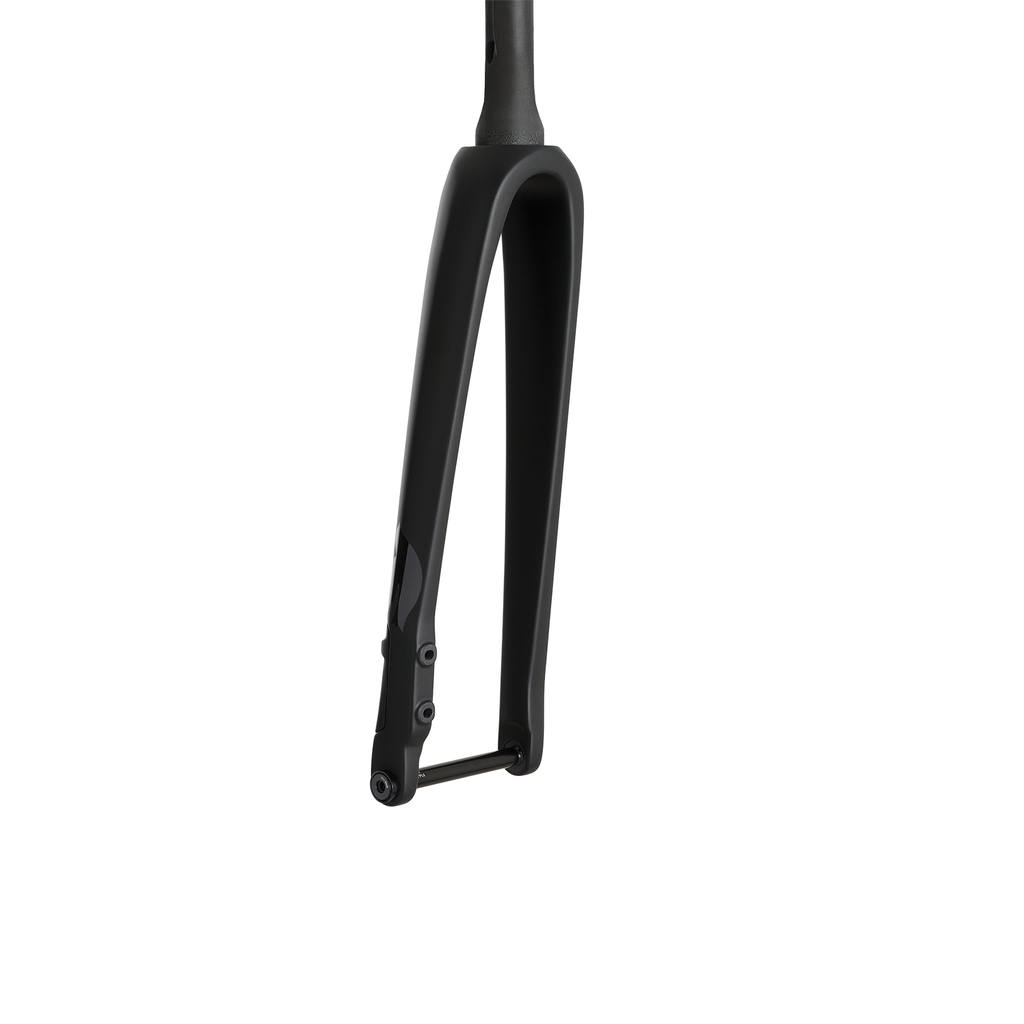

The Columbus Futura Trefoil Road is a high-performance integrated road fork built around the proprietary Trefoil steerer system, which provides full internal cable routing compatible with both mechanical and electronic groupsets. Designed for the Nemo Tig Road and Speciale Corsa XCR, the 1-1/2" tapered carbon steerer interfaces directly with the Trefoil expander for a clean, wire-free cockpit. Flat-mount disc brake ready, 12mm thru-axle included. Supplied ready-to-paint (UD carbon finish) with masking set.
specs
Figures as published in the Columbus components catalogue.
- Material
- T700S & HFM Carbon Fiber
- Finishing
- Painted with Columbus graphics
- Steerer
- Trilobe Tapered 1-1/8” – 1-1/2”
- Steerer length
- 350 mm
- Axle to crown
- 367 mm
- Rake
- 45 mm
- Crown diameter
- 56 mm
- Tire clearance
- 32 mm
- Axle standard
- 12x119 (included)
- Axle length
- 100 mm
- Disc clamp
- Flat mount
- Cable routing
- Internal
- Eyelets
- No
- Recommended expander
- Columbus Trefoil 3DTRAA50BLK (55 mm) / 3DTRAABLK (80 mm)
