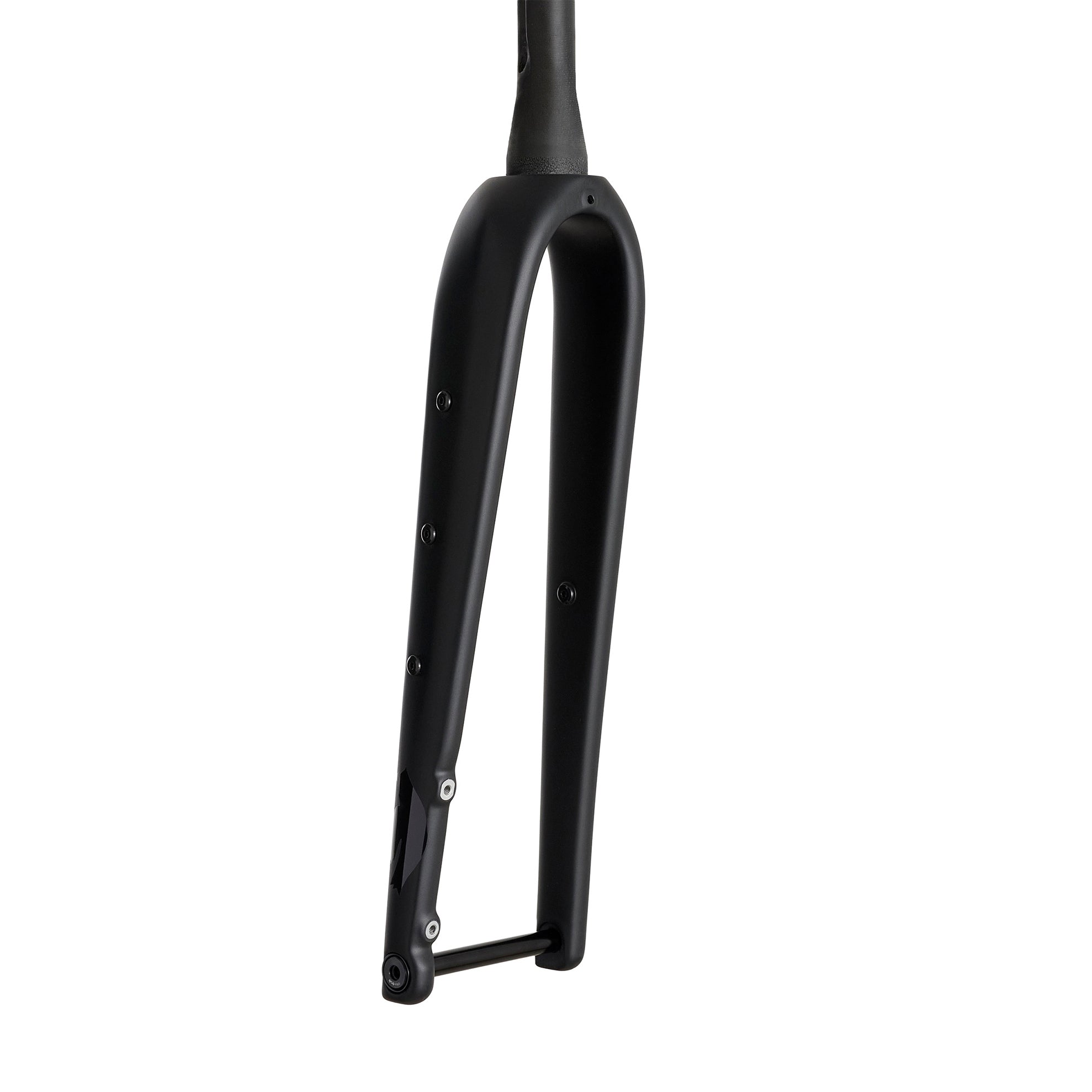

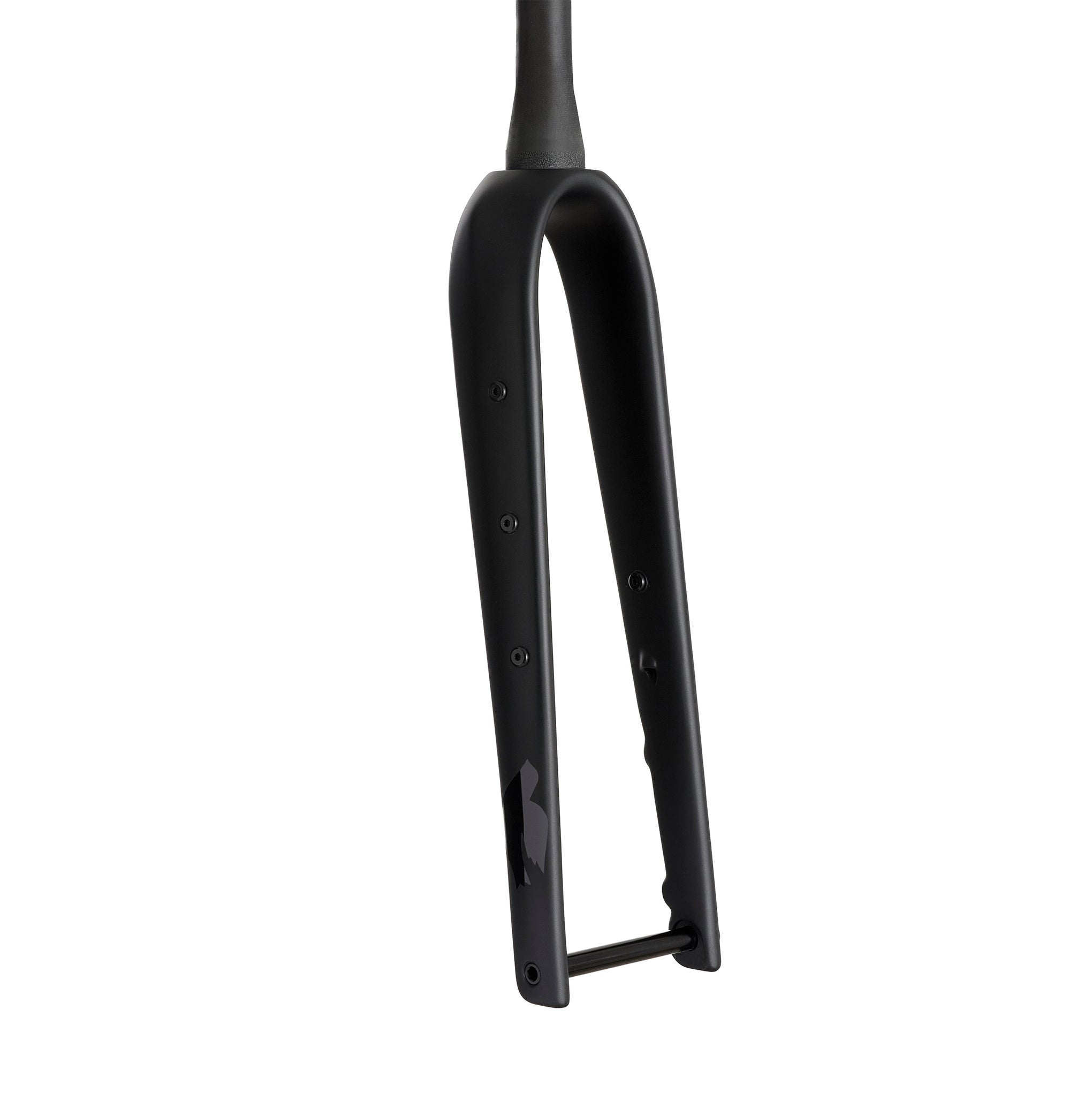

trefoil allroad
The Columbus Futura Allroad Trefoil combines the clean aesthetics of the Trefoil fully integrated steerer with the versatility demanded by allroad and gravel riding. Full internal cable routing is achieved through the proprietary Trefoil expander system, keeping the cockpit uncluttered on long adventures. Built from high-modulus carbon with a 1-1/2" tapered steerer, flat-mount disc brake compatibility, and 12mm thru-axle included. Supplied ready-to-paint (UD carbon finish) with masking set.
Spezifikationen
Angaben gemäß Columbus Components-Katalog.
- Material
- T700S & HFM Carbon Fiber
- Finishing
- Painted with Columbus graphics
- Gabelschaft
- Trilobe Tapered 1-1/8” – 1-1/2”
- Gabelschaftlänge
- 350 mm
- Achse zu Gabelkrone
- 384 mm
- Rake
- 47 mm
- Crown diameter
- 56 mm
- Tire clearance
- 45 mm (40 mm with mudguards)
- Axle standard
- 12x121 (included)
- Axle length
- 100 mm
- Disc clamp
- Flat mount
- Kabelführung
- Internal
- Ösen
- Luggage eyelets, hidden fender mounts
- Empfohlener Expander
- Columbus Trefoil 3DTRAA50BLK (55 mm) / 3DTRAABLK (80 mm)
