trefoil road

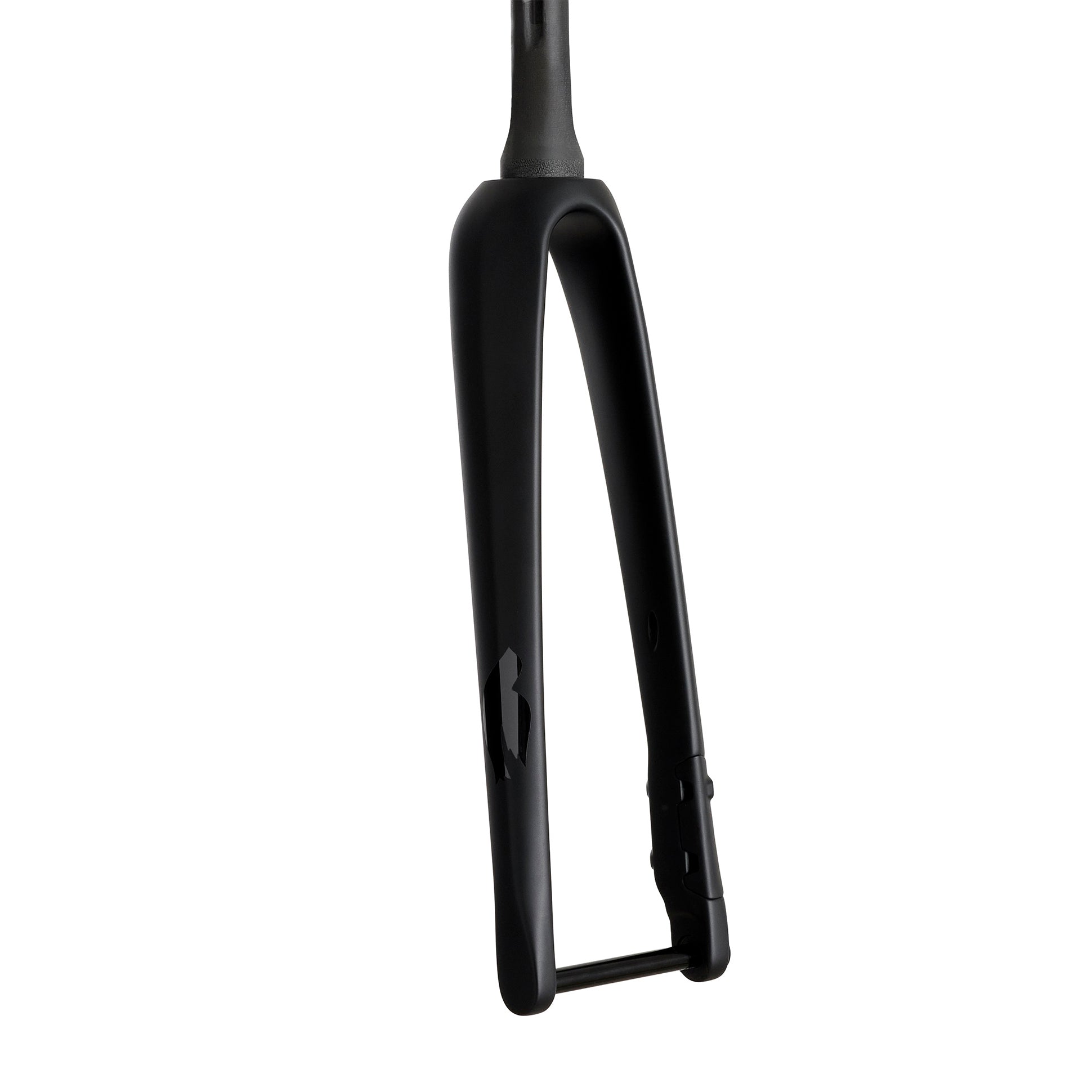

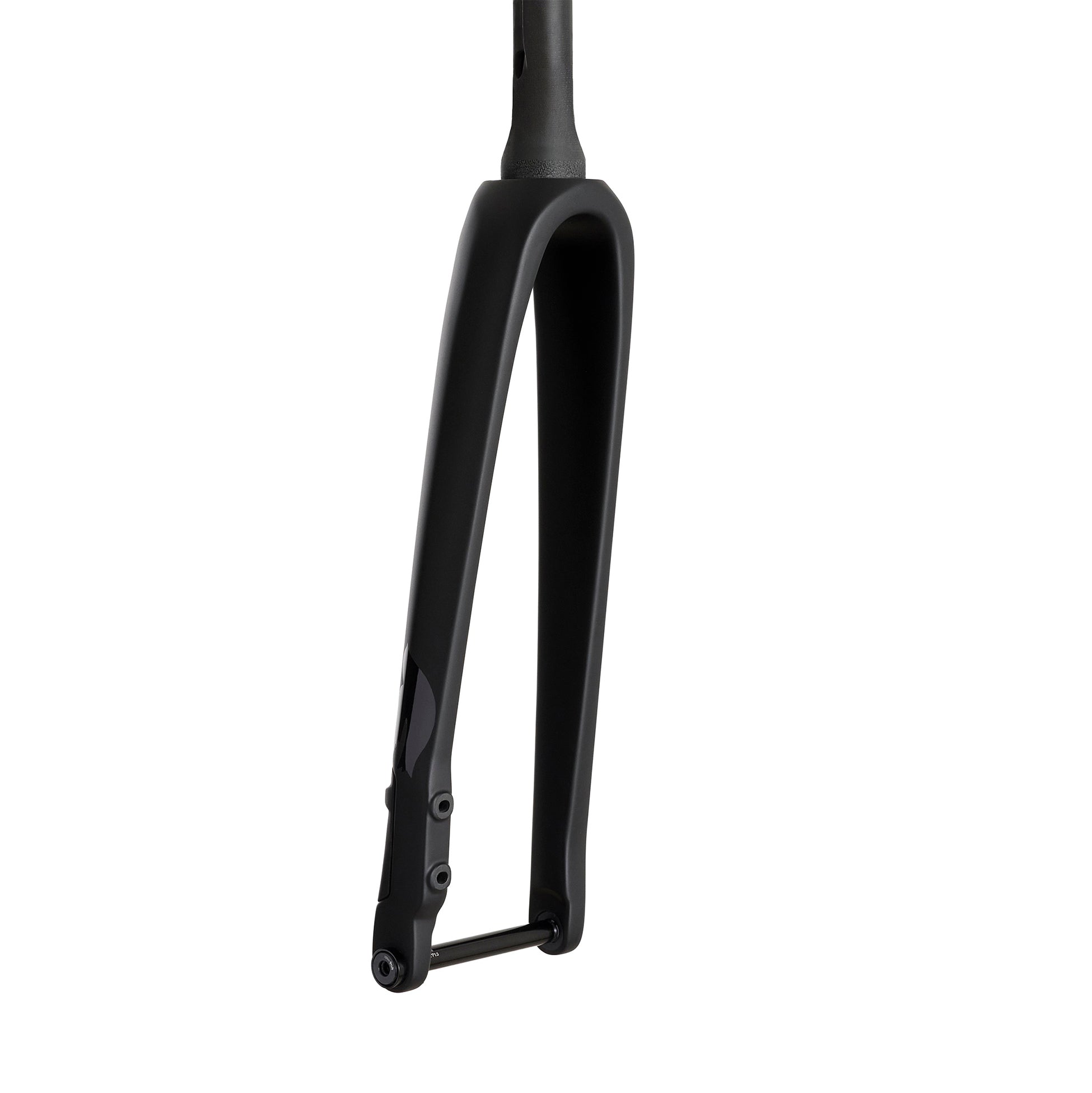

The Columbus Futura Trefoil Road is a high-performance integrated road fork built around the proprietary Trefoil steerer system, which provides full internal cable routing compatible with both mechanical and electronic groupsets. Designed for the Nemo Tig Road and Speciale Corsa XCR, the 1-1/2" tapered carbon steerer interfaces directly with the Trefoil expander for a clean, wire-free cockpit. Flat-mount disc brake ready, 12mm thru-axle included. Supplied ready-to-paint (UD carbon finish) with masking set.
Spezifikationen
Angaben gemäß Columbus Components-Katalog.
- Material
- T700S & HFM Carbon Fiber
- Finishing
- Painted with Columbus graphics
- Gabelschaft
- Trilobe Tapered 1-1/8” – 1-1/2”
- Gabelschaftlänge
- 350 mm
- Achse zu Gabelkrone
- 367 mm
- Rake
- 45 mm
- Crown diameter
- 56 mm
- Tire clearance
- 32 mm
- Axle standard
- 12x119 (included)
- Axle length
- 100 mm
- Disc clamp
- Flat mount
- Kabelführung
- Internal
- Ösen
- No
- Empfohlener Expander
- Columbus Trefoil 3DTRAA50BLK (55 mm) / 3DTRAABLK (80 mm)
